In conditions of global competition in the precast concrete market, enterprise productivity directly depends on the turnover rate of molding capacities and the geometric accuracy of finished products. Traditional methods of fixing side forms, requiring welding or mechanical fastening to pallets, become the main "bottleneck" slowing down production cycles. High-tech magnetic formwork systems from TDM Engineering Oy offer a fundamentally different approach to organizing the molding process. This solution allows you to radically reduce the time for line changeovers, while ensuring perfect surface quality and strict adherence to design dimensions without damaging the expensive steel pallet.
The Essence and Operating Principles of Magnetic Fixation Systems

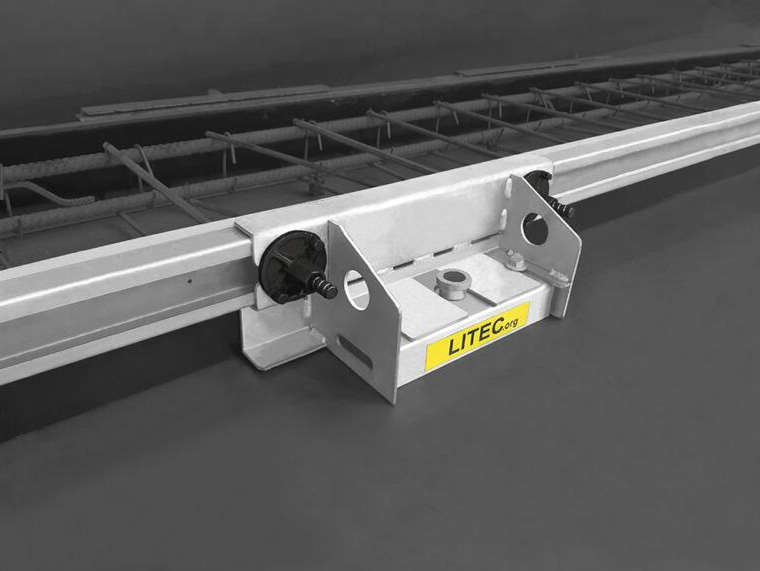

The proposed solution is based on the use of ultra-powerful neodymium magnets integrated into special steel blocks. The magnetic formwork system allows you to instantly fix the side tooling on the metal surface of the bed in any required position. The activation mechanism is extremely simple: after positioning the side form, the operator presses the button on the block, creating a clamping force of hundreds of kilograms, which reliably holds the mold during pouring and high-frequency vibration.
Formwork with magnetic holders eliminates the need to drill holes in molding tables or use clamps. This preserves the integrity of the steel coating of the pallet, preventing corrosion and equipment wear. The system is universal and modular: it includes not only fixing blocks, but also adapters for mounting various types of side forms, built-in elements for forming openings, and specialized chamfers. Thanks to such flexibility, the plant can switch from producing one range of products to another in a matter of minutes.
Practical Application in Precast Concrete Production
Formwork with magnetic holders is used at all stages of precast concrete manufacturing, where high accuracy and rapid mold configuration changes are required. TDM Engineering Oy engineering solutions are adapted for operation in severe factory conditions and allow effectively solving the following tasks:
- Forming the outer contour of panels. Magnetic side tooling allows building formwork of any complexity for wall panels, columns, and beams, ensuring the tightness of joints and the absence of cement laitance leaks.
- Creating technological voids and openings. Using built-in magnetic blocks, void formers for window and door openings, as well as niches for engineering communications, are easily fixed and remain stationary even during intense concrete compaction.
- Fixing embedded parts. The use of compact magnetic holders allows precise positioning of anchors, lifting loops, and plates in the body of the future product, eliminating the risk of their displacement during concreting.
- Designing chamfers and edges. Specialized magnetic chamfers are used to create neat beveled edges on facing panels, which increases the aesthetic value and durability of finished structures.
Technical Advantages and Economic Benefits of the Equipment
The implementation of professional fixation systems from TDM Engineering Oy is a direct investment in reducing production costs. Modern formwork with magnetic holders provides an enterprise with a number of critical advantages:
- Minimization of manual labor: installation and dismantling of tooling occur 3-4 times faster compared to mechanical methods, which allows freeing up personnel for other tasks.
- Perfect geometric accuracy: rigid fixation of side forms guarantees the absence of deviations from specified dimensions, reducing the reject rate and costs for subsequent finishing of products.
- Durability of molding equipment: eliminating welding work when fastening side forms increases the service life of steel tables several times, maintaining their smoothness and flatness.
- High line adaptability: the modular design allows setting up the production of individual products according to customer drawings in the shortest possible time, increasing the market flexibility of the plant.
- Operational reliability: the cases of magnetic blocks are made of wear-resistant steel and protected from concrete mixture ingress, which ensures stable system operation for many years.
Expert Approach to Modernizing Your Production
TDM Engineering Oy designs and supplies complex technological lines where each component is aimed at achieving maximum profitability.
We offer not just equipment, but a proven technology for the production of prestressed and precast concrete, tested at facilities worldwide. Our engineers will help select the optimal configuration of magnetic systems for your specific tasks, ensuring smooth integration into the existing production process.
By choosing innovative solutions, you receive a quality guarantee, technical support, and confidence in the stable growth of your enterprise's productivity. Contact us for a consultation and calculation of specifications for your needs.
